Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

warranty : 1 Year

Instrument Type : Torsion Testing Machine

Brand Name : LONROY

Price : $1,000

MOQ : 1

power : /

material : /

customized support : OEM, ODM, OBM

color : /

Place of Origin : Guangdong, China

Contact Now

Products Description
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

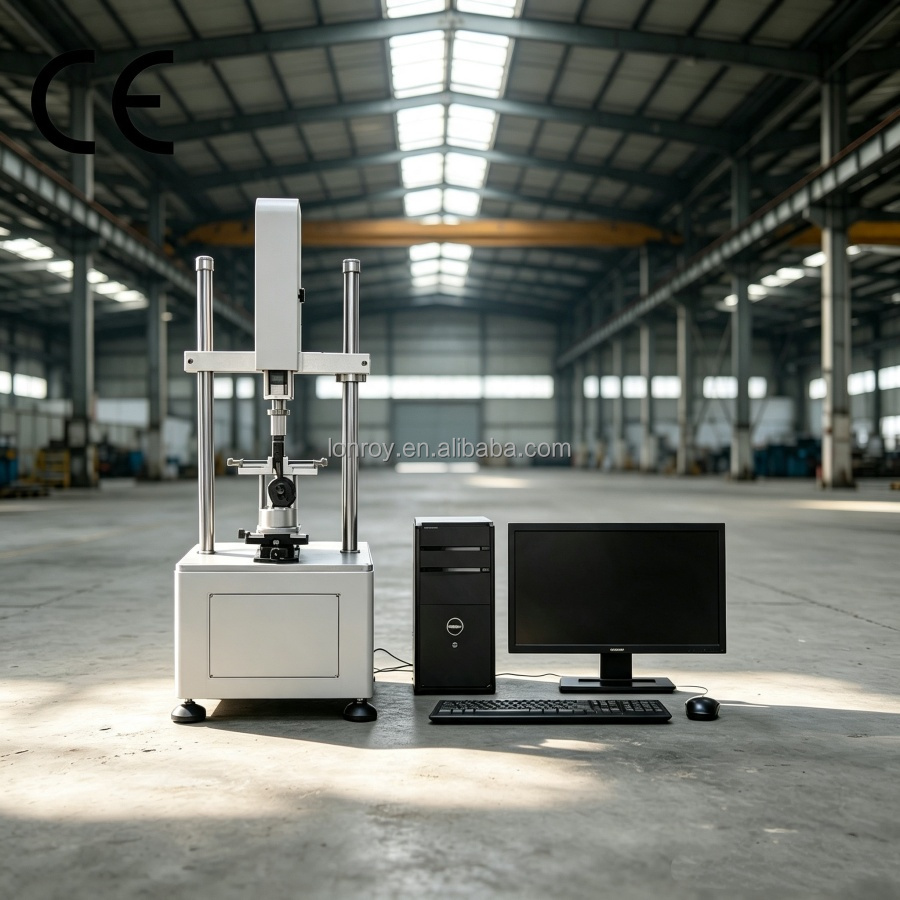

Equipment Overview This machine utilizes computer control for the entire testing process and supports both clockwise and counter-clockwise testing. It provides real-time dynamic display of test curves illustrating the relationships between torque, angle, and impedance values. It is commonly used for torque or torsional life testing of products such as cosmetic cases, mobile phones, tablets, e-readers, chargers, automotive door locks, and hinges.

Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
Specification
Main Technical Specifications
Item
Specification
Model
LR-AD105
Torque Range
5 N·m, 10 N·m, 20 N·m, 50 N·m
Effective Force Measurement Range
1–100% of full scale
Torque Resolution
0.001 N·cm
Torque Indication Accuracy
±0.5%
Torque Unit Switching
kgf·cm, N·m, Lb·in
Test Angle
Unlimited
Angle Resolution
0.001°
Rotation Speed Range
60–15,000°/min
Effective Test Height
400 mm (customizable)
Effective Test Width
400 mm (customizable)
Fixture Adjustment Range
X and Y axes: 0–200 mm; Accuracy: ±0.05 mm
Fixture Clamping Diameter
5–60 mm
Machine Dimensions
Approx. 420 × 310 × 1150 mm
Weight
Approx. 67 kg
Our Advantages
Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer
