Introduction

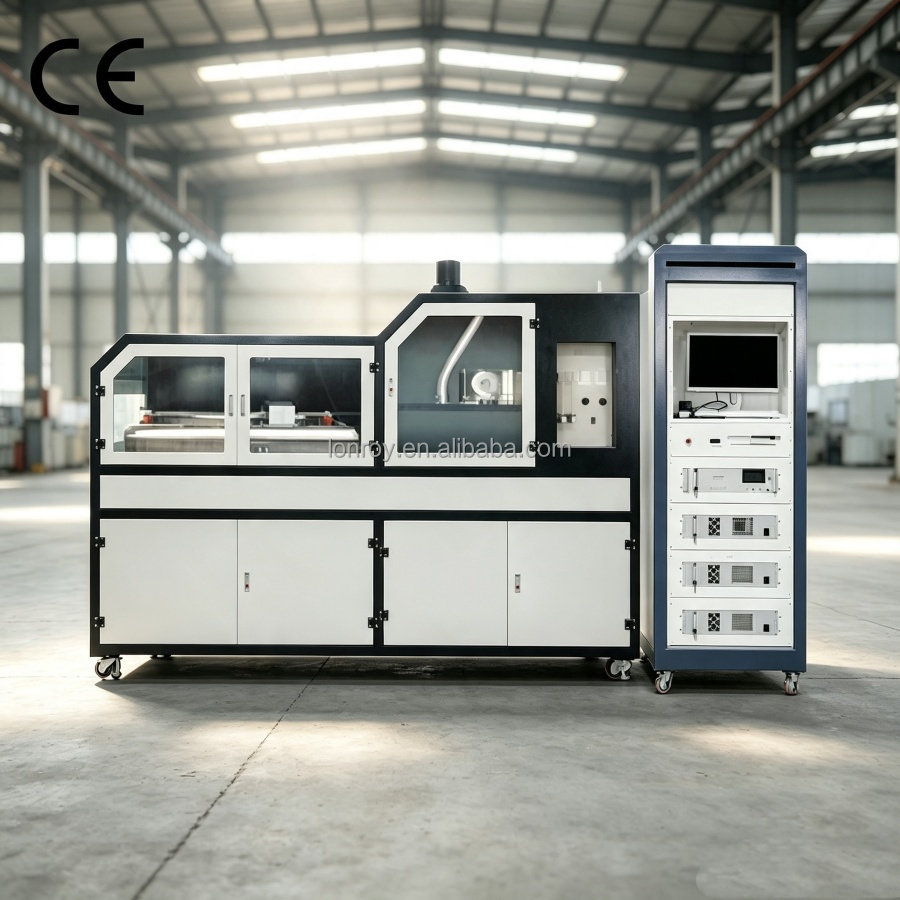

The LR-ER104 Combustion Toxicity Index (CIT) Tester employs the tube furnace combustion test method; the specimen undergoes high-temperature decomposition and gas release, and the evolved gases are collected for toxicity analysis.
Combustion Toxicity Index Tester CIT Testing Machine Thermal Decomposition Toxic Gas Test Bench Fire Smoke Safety Detector
Scope of Application
The LR-ER104 Combustion Toxicity Index (CIT) Tester is suitable for toxicity index testing of non-metallic materials used in halogen-free, low-smoke, and low-toxicity electric wires, cables, or optical cables. Quantitative analysis of SO2, NOx, and HCN must be performed if nitrogen and sulfur are present; if the absence of nitrogen and sulfur is confirmed, such quantitative analysis is not required.
Combustion Toxicity Index Tester CIT Testing Machine Thermal Decomposition Toxic Gas Test Bench Fire Smoke Safety Detector
Standards Compliance
1.Complies with Appendix C, "Toxicity Index Test Method," of GB/T 19666-2019, *General Rules for Flame-Retardant and Fire-Resistant Electric Wires, Cables, or Optical Cables*.
2. Complies with EN 50305:2020 "Railway applications — Railway rolling stock cables having special fire performance — Test methods";
3.Complies with NF X70-100 and NF X 70-100-2;
4. Complies with NF X70-100:2006 "Analysis of combustion gases — Part 1: Methods for analysis of gases produced by thermal degradation";
5. Complies with NF X70-100-2:2006 "Analysis of combustion gases — Part 2: Tube furnace thermal degradation method";
6. Complies with EN 45545-2:2013 "Railway applications — Fire protection on railway vehicles — Part 2: Requirements for fire behaviour of materials and components," Annex C "Test method for the determination of toxic gases in railway products";
Combustion Toxicity Index Tester CIT Testing Machine Thermal Decomposition Toxic Gas Test Bench Fire Smoke Safety Detector
Main Features
1. Temperature control: Uses Proportional-Integral-Derivative (PID) regulation and control;
2. Heating rate: Controlled via PLC programming;
3. Inner furnace chamber surface: Coated with a high-temperature alumina material (imported from the USA, rated for 1750°C) to enhance reflectivity and heating efficiency while extending the instrument's service life;
4. Heating elements: Uses imported Japanese resistive heating wires embedded with extended ceramic rings and copper pillars to reduce contact resistance, improve heating efficiency, and extend the furnace body's service life;
5. Specimen tray: Uses a specially customized calcined quartz boat;
6. Specimen handling: Electromagnetic mechanism for inserting and retrieving specimens, ensuring ease of use and safety.
