Application : Auto Testing
Accuracy : /
Price : $98
customized support : OEM, ODM, OBM
power : ---
Standard : DIN 52311
Type : Testing Machine
warranty : 1 Year
MOQ : 1
Voltage : 220 V, Other
Accuracy Class : High Accuracy
Protection Class : Ip56
Brand Name : LONROY
Place of Origin : Guangdong, China

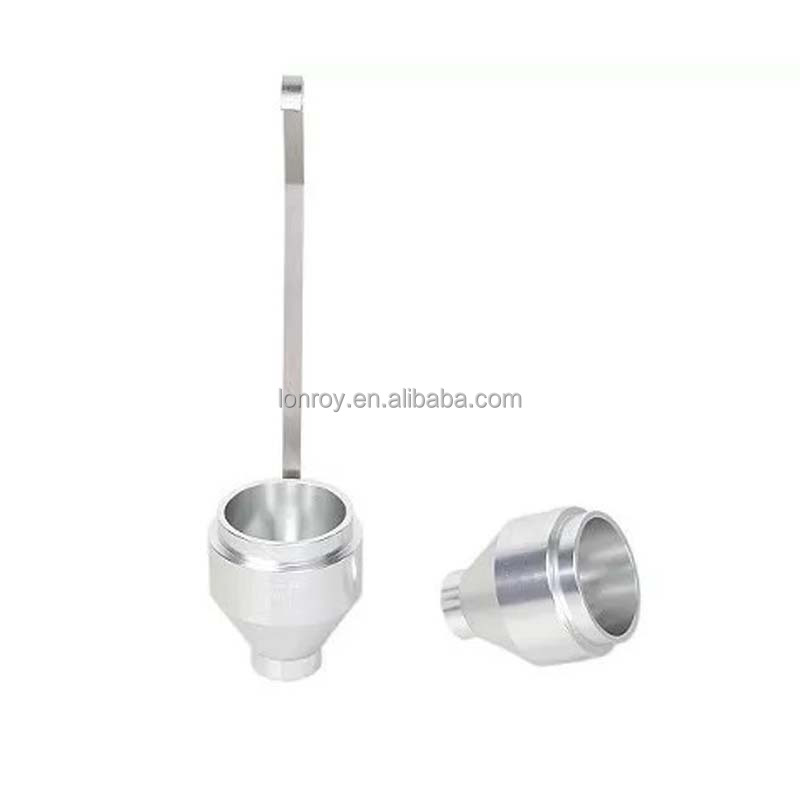

DIN 52311 DIN Dip Cup 100 ml Viscosity Measuring Device Dip Flow Gravity Viscometer Portable Viscosity Dip Cup Paint Dip Tester
DIN Dip Cup
Designed for users to quickly measure the flow time of paint and similar liquids in the workshop.
Aluminum cup body, stainless steel flow nozzle.
There is a stainless steel ring handle on the edge of the cup for easy operation.
Standard
DIN 52311
DIN 52311 DIN Dip Cup 100 ml Viscosity Measuring Device Dip Flow Gravity Viscometer Portable Viscosity Dip Cup Paint Dip Tester
Technical Parameter
|
Cup volume |
100 ml |
|
Outflow aperture |
4 mm ± 0.02 mm |
|
Outflow time |
20-110 sec |
|
Measuring range |
96-683 cSt |
Shipping List
DIN Dip Cup
Instructions



|
|
DIN52311 DIN Dip Cup 100 ml Viscosity Measuring Device Dip Flow Gravity Viscometer Portable Viscosity Dip Cup Paint Dip Tester Images |
